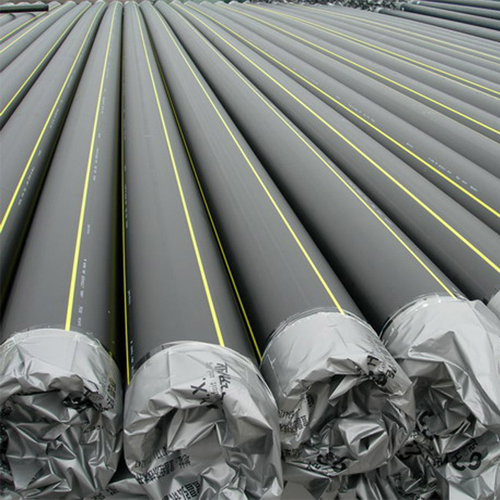

Product Name:polyethylene pipes for gas supply
Specification:
|
nominal outside diameter (mm) |
PE80 |
PE100 |
||
|
SDR17.6(≦0.2MPa) |
SDR11(≦0.4MPa) |
SDR17.6(≦0.6MPa) |
SDR11(≦1.0MPa) |
|
|
wall thickness (mm) |
wall thickness (mm) |
wall thickness (mm) |
wall thickness (mm) |
|
|
16 |
2.3 |
3.0 |
2.3 |
3.0 |
|
20 |
2.3 |
3.0 |
2.3 |
3.0 |
|
25 |
2.3 |
3.0 |
2.3 |
3.0 |
|
32 |
2.3 |
3.0 |
2.3 |
3.0 |
|
40 |
2.3 |
3.7 |
2.3 |
3.7 |
|
50 |
2.9 |
4.6 |
2.9 |
4.6 |
|
63 |
3.6 |
5.8 |
3.6 |
5.8 |
|
75 |
4.3 |
6.8 |
4.3 |
6.8 |
|
90 |
5.2 |
8.2 |
5.2 |
8.2 |
|
110 |
6.3 |
10.0 |
6.3 |
10.0 |
|
125 |
7.1 |
11.4 |
7.1 |
11.4 |
|
140 |
8.0 |
12.7 |
8.0 |
12.7 |
|
160 |
9.1 |
14.6 |
9.1 |
14.6 |
|
200 |
11.4 |
18.2 |
11.4 |
18.2 |
|
225 |
12.8 |
20.5 |
12.8 |
20.5 |
|
250 |
14.2 |
22.7 |
14.2 |
22.7 |
|
280 |
15.9 |
25.4 |
15.9 |
25.4 |
|
315 |
17.9 |
28.6 |
17.9 |
28.6 |
|
355 |
20.2 |
32.3 |
20.2 |
32.3 |
|
400 |
22.8 |
36.4 |
22.8 |
36.4 |
|
450 |
25.6 |
40.9 |
25.6 |
40.9 |
|
500 |
28.4 |
45.5 |
28.4 |
45.5 |
|
560 |
31.9 |
50.9 |
31.9 |
50.9 |
|
630 |
35.8 |
57.3 |
35.8 |
57.3 |
